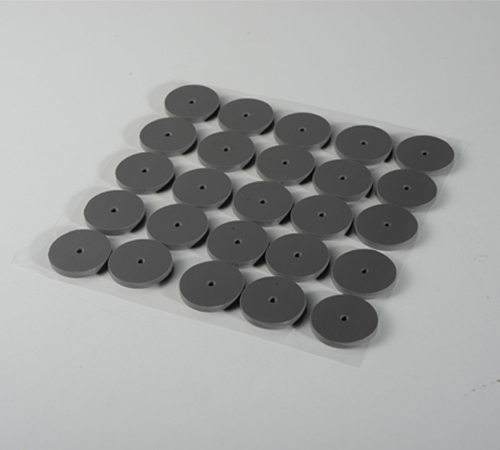

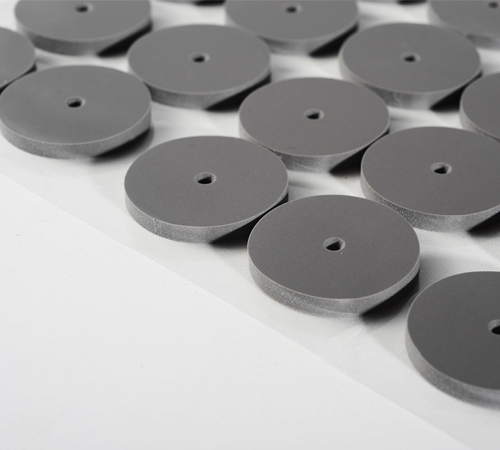

8.0W thermal conductive silicone sheet

8.0W thermal conductive silicone sheet
Thermal conductivity :8.0W/m.k
Temperature resistance range:-40-200℃
Customized Thickness:1.0-5.0mm
Flame retardant grade conform to UL 94 V-0
Thermal conductivity :8.0W/m.k
Temperature resistance range:-40-200℃
Customized Thickness:1.0-5.0mm
Flame retardant grade conform to UL 94 V-0
Contact Us
8.0W thermal conductive silicone sheet Apply For Quotation
Product Introduction
NF800 Thermal conductive silicone sheetIt is processed using silicone and thermal conductive ceramic fillers through a special process, with double-sided self-adhesion and excellent thermal conductivity and electrical insulation performance under low pressure shrinkage. Stable operation can be achieved between -40 ℃ and 200 ℃, meeting the Flame retardant grade requirements of UL94V0.
Characteristics and advantages

High reliability;

High thermal conductivity rate;

High compressibility, soft and elastic;

Natural viscosity, double-sided self-adhesive, without the need for additional surface adhesive, meeting the environmental requirements of ROHS and UL。
Application method

Filling between circuit board and heat sink;

Filling between IC and heat sink or product casing。

Application area
Communication equipment, computers, switching power supplies, flat panel TVs, mobile devices, video devices, network products, household appliances, medical devices, PC servers, workstations, optical drives, COMBO, base stations, etc。
Product Property Table
Characteristic NF800 Test method
Thickness(mm) 1.0-5.0 ASTM D374
Component Silicone& ceramics ——
Colour Grey Visuai
HardnessshoreC 30±5 ASTM D2240
Densityg/cm3 3.5 ASTM D792
Tear strengthKN/m 0.5 ASTM D412
Elongation rate% 153 ASTM D374
Temperature resistance range℃ -40—200 EN344
Breakdown voltageKv >10 ASTM D149
Volume resistivityΩ·cm 1.5×1016 ASTM D257
Dielectric constant@1MHz 8 ASTM D150
Weight loss% <0.5 @200℃240H
Fire performance V—0 UL 94
Thermal conductivity W/m.k 8.0 ASTM D5470
