6158DT-1 single component flame retardant adhesive sealant

6158DT-1 is a thixotropic and slightly collapsed Room temperature cured single component silicone adhesive sealant that is non corrosive to the vast majority of metals. It has excellent resistance to cold and hot alternating current, aging, and electrical insulation, as well as excellent moisture resistance, seismic resistance, corona resistance, leakage resistance, and Flame retardancy. This product is a dealcoholized single ComponentsRoom temperature cured silicone rubber, suitable for bonding and sealing materials such as lighting, power supplies (PCB), etc,
Passed the international environmental Rohs certification certificate number: CANEC1517184601
EU Reach certification number: SET2015-09774
Flame retardancy can reach the highest level of 94-V0, UL certificate number: E335127

Typical Uses

1、 Bonding PC, ABS, PBT, and other difficult to stick materials；
2、 Sealing for insulation and fixation of electronic accessories；
3、 Adhesive and sealing of metal and plastic shells for other chargers；
4、 Adhesive sealing and mechanical adhesive sealing in the fields of lighting, small household appliances, circuit boards, electronic components, switching power supplies, etc。

Process used

1、 Clean the surface: Clean the surface of the adhesive or coated material and remove rust, dust, and oil stains。
2、 Glue application: Cut open the cap of the glue tube, squeeze the glue solution onto the cleaned surface, distribute it evenly, and fix the adhered surface together.
3、Curing: Place the components that have been glued or sealed in air for natural curing. The curing process is a process of curing from the surface to the inside. Within 24 hours (Room temperature 25 ° and relative humidity 55%), the adhesive will cure to a depth of 2-4mm. If the location is deep, especially in areas that are not easily in contact with air, the complete curing time will be extended. If the temperature is low, the curing time will also be extended. Before further processing or packaging the bonded components, it is recommended that users wait long enough to ensure that the firmness and integrity of the bonding are not affected.

Note

After the operation is completed, the unused adhesive should be immediately tightened and sealed for storage. When reusing, if there is a slight crust at the sealing area, it can be removed without affecting normal use. During the storage process of the adhesive, there may also be a small amount of solidification at the nozzle, which can be removed for normal use without affecting product performance.

Illustrate
The data in this article is measured in the laboratory of the R&D Center of Shenzhen Oupute Industrial Materials Co., Ltd. and is believed to be reliable. Opert Company is not responsible for the results obtained by anyone using methods beyond our control; It is the responsibility of the user to decide which production method to use this product in and which measures to take to prevent potential losses and personal injuries during storage and use of the product. Given this, our company explicitly declares that it does not guarantee any issues arising from the sale of our products or the use of our products in specific situations. Our company explicitly declares that we are not responsible for any indirect or accidental losses, including losses in terms of profits. The various production processes or chemical components discussed in this article cannot be understood as products that can be easily used and owned by others. It is recommended that users conduct experiments based on the data provided in this article before formal use.

Technical Parameter

Before curing	Performance index	Reference standards	6158DT-1
	Appearance	Visualization	Black Slight Collapse
	Relative Density（g/cm3）	GB/T 533-2008	1.4
	Surface drying time （min） Winter (November April)	GB/T13477.5-2002	5～20
	Surface drying time （min） Summer (May October)	GB/T13477.5-2002	3～15
	Complete curing time (h)	Actual measurement of usage environment	24
	Curing type	Actual measurement using the system	Alcohol type
strong   Change   After	Hardness(Shore A)	GB/T 531.1-2008	50±5
	Tensile strength（MPa）	GB/T528-2009	≥1.8
	Shear strength（MPa）	GB/T7124-2008	≥2.5
	Elongation at break（%）	GB/T 528-2009	＞140
	Peel Strength（N/mm）	GB/T7124-2008	＞30
	Operating temperature range(℃)	Actual measurement of usage environment	-50～250
	Volume resistivity (Ω·cm)	GB/T 1692-2008	≥3×1014
	Dielectric strength (kV/·mm)	GB/T 1695-2005	≥18
	Dielectric constant (1.2MHz)	GB/T1693-2007	2.9
	Flame retardant grade	GB/T 10707-2008	94-VO

The above performance data were all measured at 25 ℃, with a relative humidity of 55% cured for 7 days. Our company does not assume any responsibility for data differences caused by different Test conditions or product improvements.

Packaging specifications

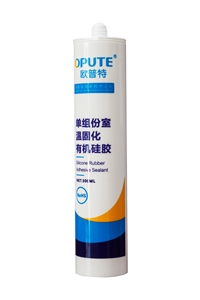

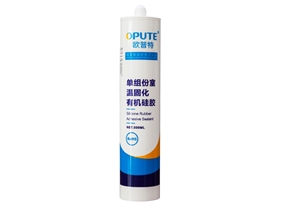

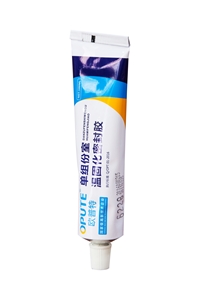

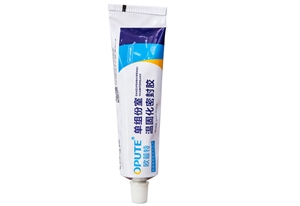

100ML/120g/Branch 100Branch/box、 300ML/420g/Branch 25Branch/box、

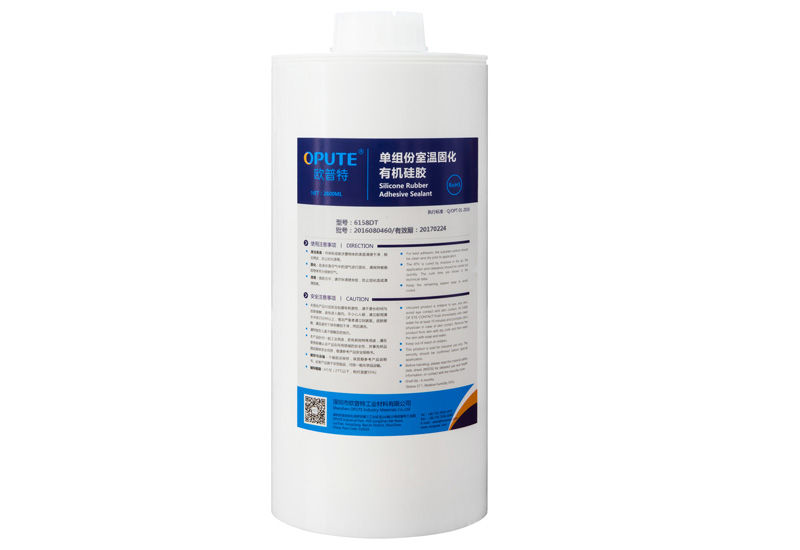

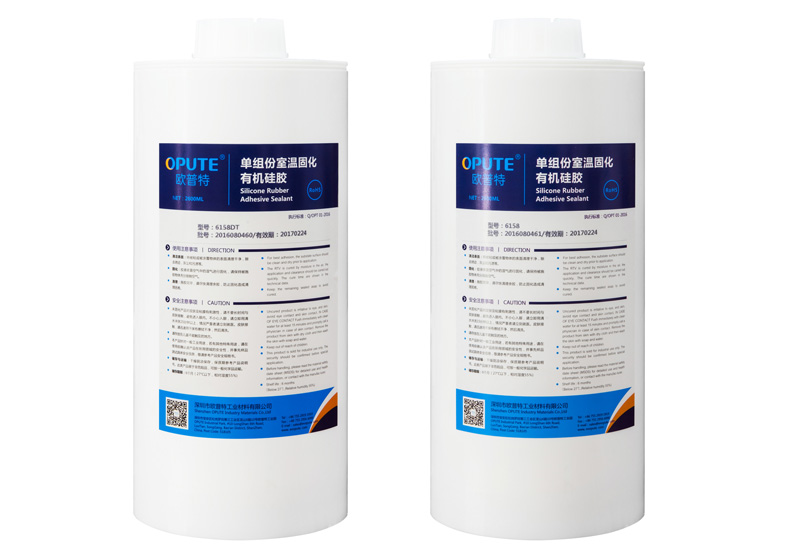

2.6L/3600g/Branch 4Branch/box

Storage and transportation

1、 This product needs to be stored in a cool and dry environment below 27 ℃, with a storage period of six months; After the Quality Guarantee period, after inspection, all technical indicators are still qualified and can be continued for use
2、 This type of product belongs to non hazardous materials and can be transported as general chemicals. Be careful not to leak during transportation!
3. Products that have exceeded their shelf life should be confirmed for any abnormalities before use。
