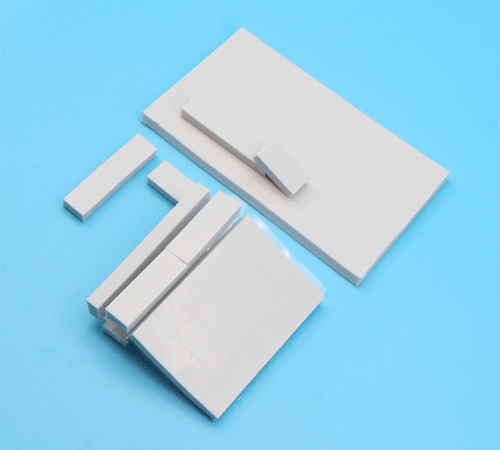

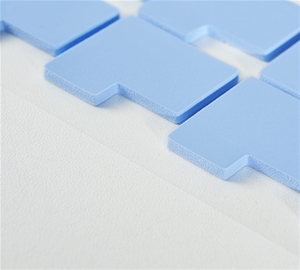

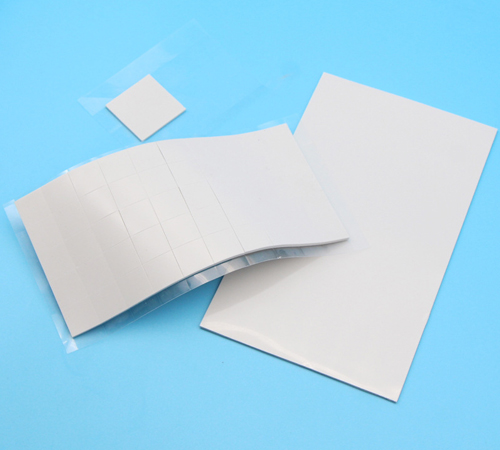

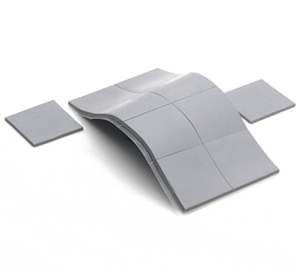

1.5W thermal conductive silicone sheet

Thermal conductivity ：1.5W/m.k
Temperature resistance range：-40-200℃
Customized Thickness：0.3-15mm
Flame retardant grade conform to UL 94 V-0

Product Introduction

Thermal conductive silicone sheet is a high-performance gap filled thermal conductive material mainly used for the transfer interface between electronic devices and heat sinks or product shells. NF150 has good viscosity, flexibility, good compression performance and excellent heat conductivity. Make it possible to completely exhaust the air between the electronic components and the heat sink during use, in order to achieve sufficient contact. The heat dissipation effect is significantly increased. At the same time, it has a certain degree of viscosity, which brings great convenience in the installation process of the product compared to ordinary insulation and thermal conductive materials. It is not easy to fall off and is easy to operate.

Characteristics and advantages

- High reliability；
- High compressibility, soft and elastic；
- High thermal conductivity rate；
- Natural viscosity, double-sided self-adhesive, without the need for additional surface adhesive, meeting the environmental requirements of ROHS and UL.

Application method

- Filling between circuit board and heat sink；
- Filling between IC and heat sink or product casing。

Application area

Communication equipment, computers, switching power supplies, flat panel TVs, mobile devices, video devices, network products, household appliances, PC servers, workstations, optical drives, COMBO, base stations, etc。

Product Property Table

Characteristic	Metric value	Test method
Thickness（mm)	0.3-15MM	ASTM D374
Component	Silica gel&Ceramics	--
Colour	Gray/White	Visuai
HardnessshoreC	30±5	ASTM D2240
Densityg/cm3	2.1±0.1	ASTM D792
Tear strengthKN/m	0.3	ASTM D412
Elongation rate%	80	ASTM D374
Temperature resistance range℃	-40—200	EN344
Breakdown voltageKv	>11	ASTM D149
Volume resistivityΩ·cm	1.5×10¹²	ASTM D257
Dielectric constant@1MHz	4.51	ASTM D150
Weight loss%	＜3	@200℃240H
Fire performance	V—0	UL-94
Thermal conductivity W/m.k	1.5	ASTM D5470
