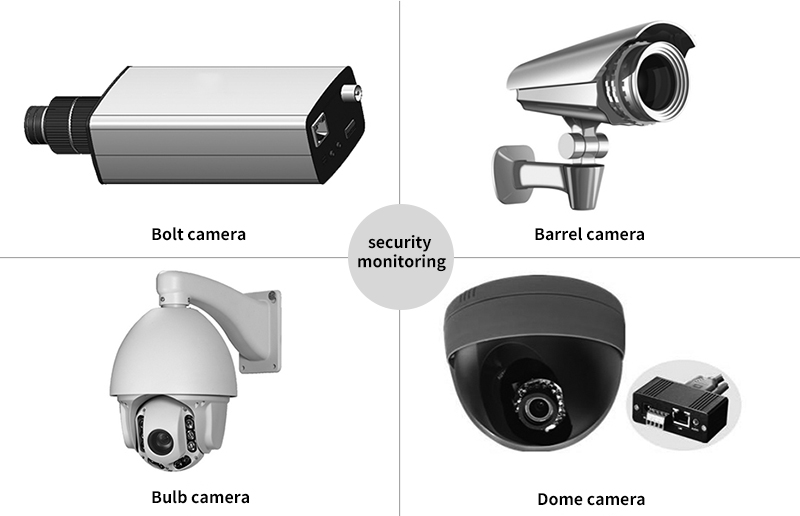

Security monitoring system is the
comprehensive utilization of modern computer technology,integrated
circuit,network control , transmission and software technology, roughly
divided into three categories:video surveillance, access control and
alarm.continuously enhanced its intelligent, initiative and border aware
in the new era.
Intelligent security monitoring puts
forward requirements for image transmission speed, definition,video
storage and data analysis,this increases the heat flux and calorific of
circuit system, threatens the stability of entire monitoring
system.Practically,a series of thermal fault problems will be occurred
such as blurred monitoring picture, data loss, bit error and restart,due
to poor heat dissipation in the core chip.
More and more 1080P,4K,8K camera are
introduced to application in camera, high-definition image processing ,
big data computing,high power consumption and calorific value in
confined quarters make the problems of thermal management and EMI shielding increasingly prominent.Simultaneously, the volatilization of thermal interface material molecules and the precipitation of silicone oil effecting on the
optical lens, the low temperature resistance of the chip, all these ask
for meticulous thermal designing.

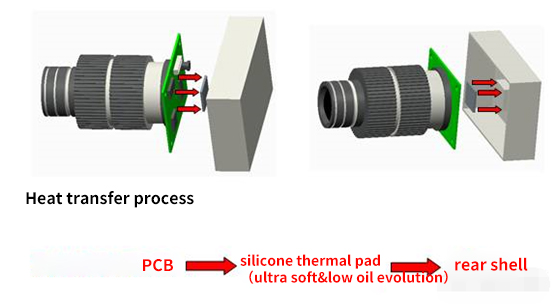

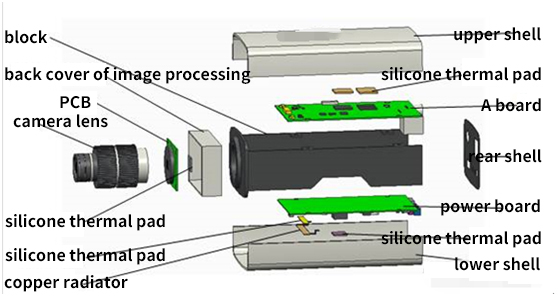

In order to ensure the stable and
reliable operation of the camera, it is urgent to reduce the working
thermal load of the core components and alleviate the thermal stress of

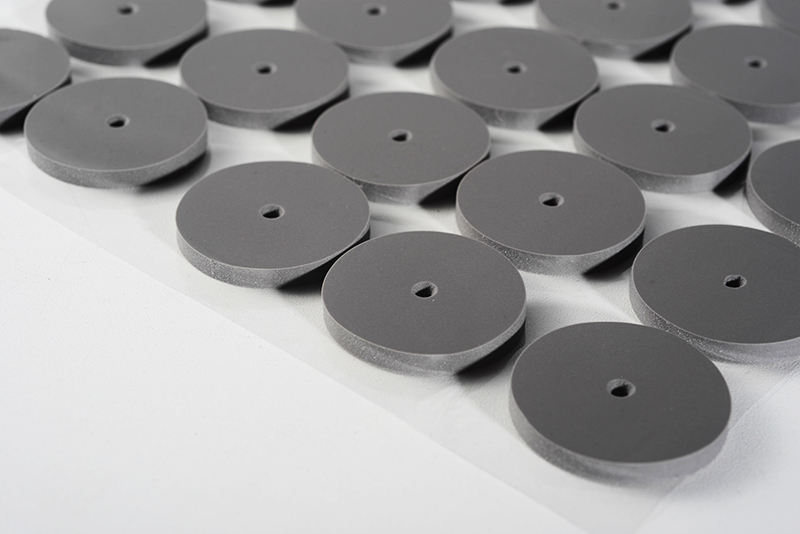

the circuit board.Opute’s low volatility ,high thermal conductivity,low
oil permeability and ultra soft thermal interface materials (thermal
grease, silicone thermal pad,
thermal putty) have perfectly assisted customers in heat dissipation
case. We can evaluate the feasibility of the overall scheme in the
initial design ,formulate a complete set of solution in the project and
supply the corresponding materials.
