916-3 two-component silicone thermal conductive potting adhesive

916-3 is a two-component silicone addition system thermal conductive potting adhesive with the following characteristics: 1. The adhesive mixture has a longer operating time after being mixed at room temperature, but can quickly solidify under heating conditions, which is particularly beneficial for use on automatic production lines. 2. Temperature resistance

916-3 is a two-component silicone addition system thermal conductive potting adhesive with the following characteristics:
1. After mixing at room temperature, the operating time of the adhesive is relatively long, but it can quickly solidify under heating conditions, which is particularly beneficial for the use of automatic production lines
2. Good temperature resistance and high temperature aging resistance. After curing, the silicone rubber maintains elasticity and excellent insulation performance within the temperature range of -40~250 ℃
3. No shrinkage during curing, with better waterproof, moisture-proof and anti-aging properties
4. The 916-3 has thermal conductivity Flame retardancy, which can reach UL94-V0 level and is certified by ROHS and Reach.

Typical Uses

Used for encapsulation protection of high-power electronic components, module power supplies with high requirements for heat dissipation and temperature resistance, and circuit boards. For example, module encapsulation, automotive HID light module power supply, automotive ignition system module power supply, solar panels, transformers, sensors, etc.

Process used

1. Open components A and B, and first mix them evenly.
2. Mix two components by weight in a mixing tank and mix evenly.
3. Pour the mixed adhesive into the device that needs to be sealed, generally without vacuum defoaming. If high thermal conductivity is required, it is recommended to vacuum defoaming before pouring. Room temperature or heating curing can be used. The curing speed of the adhesive is closely related to the curing temperature, and it takes a long time to cure in winter. It is recommended to use heating method for curing, which takes 10-20 minutes to cure at 80 ℃, and generally takes about 5 hours to cure under Room temperature conditions.

Note

1. The adhesive should be stored in a sealed manner. The mixed adhesive should be used up at once to avoid waste.
2. This product is not a hazardous material, but do not enter or eye contact.
3. After long-term storage, the filler in the adhesive may settle. Please stir evenly before use, as it will not affect the performance.
4. Contact of the adhesive with the following chemicals will cause the 916-3 to not solidify:
1） N. P, S organic compounds。
2） Sn, Pb, Hg, As plasma compounds。
3） Alkyne and Polyvinyl Compounds。

Illustrate
The data in this article is measured in the laboratory of the R&D Center of Shenzhen Oupute Industrial Materials Co., Ltd. and is believed to be reliable. Opert Company is not responsible for the results obtained by anyone using methods beyond our control; It is the responsibility of the user to decide which production method to use this product in and which measures to take to prevent potential losses and personal injuries during storage and use of the product. Given this, our company explicitly declares that it does not guarantee any issues arising from the sale of our products or the use of our products in specific situations. Our company explicitly declares that we are not responsible for any indirect or accidental losses, including losses in terms of profits. The various production processes or chemical components discussed in this article cannot be understood as products that can be easily used and owned by others. It is recommended that users conduct experiments based on the data provided in this article before formal use.

Technical Parameter

Performance index		Reference standards	916-3
Before curing	Appearance	Visualization	White（A）/Grey（B）Fluid
Before curing	Component A viscosity （cps，25℃）	GB/T 2794-1995	3500～4500
	GB/T 2794-1995		2500～3500
Operational performance	Actual measurement using the system		A ：B = 1 ：1
	Viscosity after mixing （cps）	GB/T 2794-1995	3000～4000
	Operational time （min，25℃）	Actual measurement of usage environment	30
	Surface drying time （min，25℃）	GB/T 13477.5-2002	60～80
	Initial solidification time （min，25℃）	Actual measurement of usage environment	180
Curing After	Hardness(shore A)	GB/T 531.1-2008	55±5
	Thermal conductivity [ W（m·K）]	ASTM D5470-06	≥0.7
	Dielectric strength（kV/mm）	GB/T 1695-2005	≥20
	Dielectric constant（1.2MHz）	GB/T 1693-2007	3.0
	Volume resistivity （Ω·cm）	GB/T 1692-2008	≥1.1×1014
	Operating temperature range(℃)	Actual measurement of usage environment	-40～250
	Flame retardant coefficient	UL94-V Level fire test	94-V0
	Elongation at break（%）	GB/T 528-2009	43.38
	Tensile strength（MPa）	GB/T 528-2009	1.651

The above performance data were all measured at 25 ℃, with a relative humidity of 55% cured for 7 days. Our company does not assume any responsibility for data differences caused by different Test conditions or product improvements.

Packaging specifications

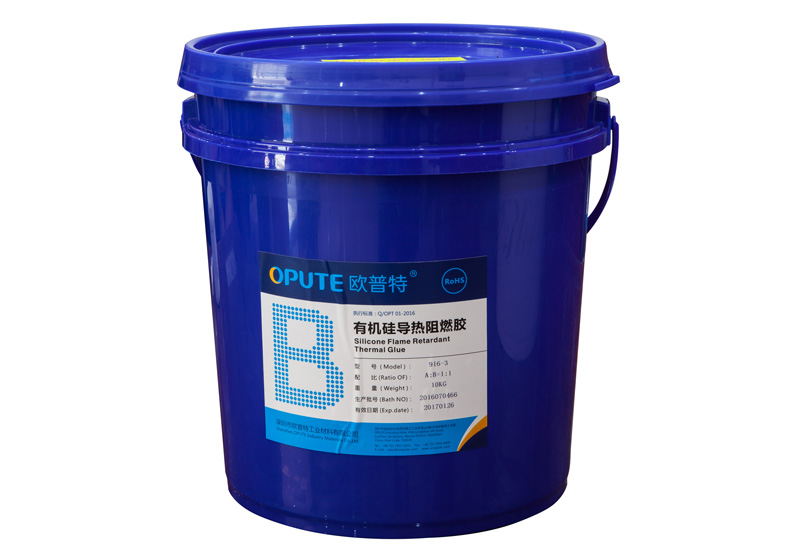

20KG/Set。（ AComponents 10KG + B Components 10KG）

Storage and transportation

1、The storage period of this product is 6 months（25℃）。
2. This type of product belongs to non hazardous goods and can be transported as general chemicals.
3、Products that have exceeded their shelf life should be confirmed for any abnormalities before use。
