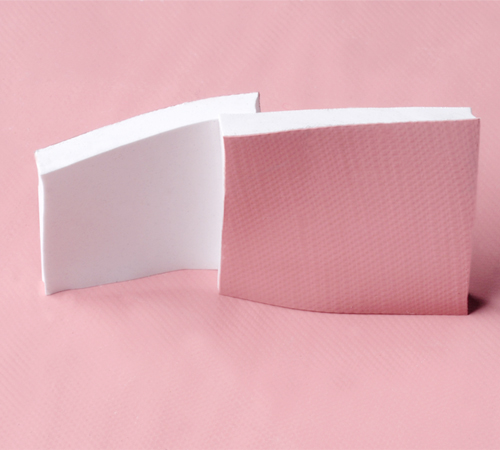

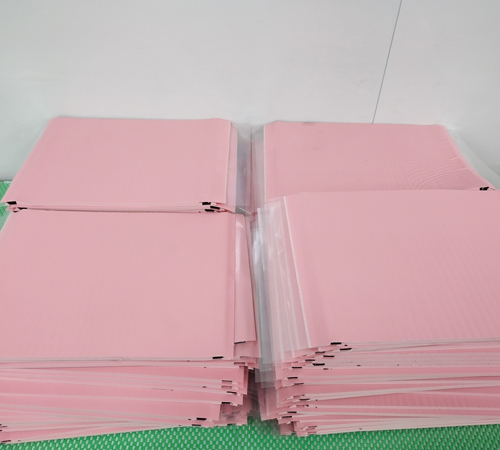

New energy thermal conductive silicone gasket

New energy thermal conductive silicone gasket
Thermal conductivity :1.0~1.5W/m.k
Operation temperature :-40-180℃
Component:Silica gel+glass fiber cloth (silicone tape)
Certified by IATF16949 in the automotive electronics industry
Thermal conductivity :1.0~1.5W/m.k
Operation temperature :-40-180℃
Component:Silica gel+glass fiber cloth (silicone tape)
Certified by IATF16949 in the automotive electronics industry
Contact Us
New energy thermal conductive silicone gasket Apply For Quotation
Product Introduction
The OputeNFION New Energy Thermal Conductive Silicone Sheet series of thermal conductivity products have mature thermal management material solutions in new energy vehicle battery packs, motor controllers (MCU), body electronic control (ECU), in car chargers, chassis control, in car entertainment and other systems. They can provide a series of product supporting solutions such as heat dissipation/soaking/thermal conductivity/insulation, helping customers achieve the safety and reliability of automotive electronic products.
Characteristics and advantages

High thermal conductivity

Low permeability oil

Super soft

Tear resistance

High temperature resistance

High insulation

Application area
New energy, BMS battery management system, EMS motor management system, ECU body electronic control system, chassis control system, OBC on-board charger
Product Property Table
Characteristic Metric value Test method
Component Silicone+silicone tape (glass fiber) -
Colour Grey White, Red Visualization
Thickness(mm) 0.5-10 ASTM D374
Density(g/cc) 2.0±0.1 ASTM D792
Hardness(shore c) 20-50 ASTM D2240
Tear strength(KN/m) 2.5 ASTM D624
Elongation rate(%) 60 ASTM D412
Temperature resistance range(℃) -40~180 EN344
Breakdown voltage(kv/mm) ≥10 ASTM D149
Dielectric constant(@1MHz)  5.7 ASTM D150
Volume resistivity(Ω·cm ) 1.0*1015 ASTM D257
Fire performance V-0 UL 94
Thermal conductivity 1.5±0.2 ASTM D5470
